|Innovative Illumination & Optics
Product Catalog - LED Illuminators

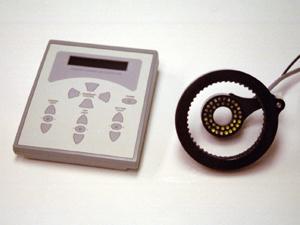

|These daylight white LED illuminators are designed for use with constant current LED controllers(Controllers); however, may be used with a basic 24VDC power supply if high wattage resistors are added in series. Above photo shows the LH-6 controller with the 40 LED ringlight and the 96 LED ringlight setup for independant quadrant controll. See below for individual illuminators.
Click our logo to return to our home page.
|2" Square 64 LED backlight available in white, red, and green. Intense illumination can also be used for diffuse surface illumination.
|1.25" ID, 2.25" OD 40 LED white ringlight designed to fit popular xoom and fixed lenses. 160mA.
|3.625" ID, 5.0" OD 96 LED white pseudo-darkfield ringlight. Maybe used in either the quardant or full ring control mode. 240mA / quadrant.
|2" ID, 5" OD, 192 white LED domed ringlight. Maybe used in either the quardant or full ring control mode. 160mA / quadrant.
